Heritage Gable
Add a new dimension to your home and lifestyle with a Stratco Outback Heritage Gable. With enduring style and versatility, the Stratco Outback Heritage Gable offers large spans and long lengths to expand your design options.
Gallery
Details

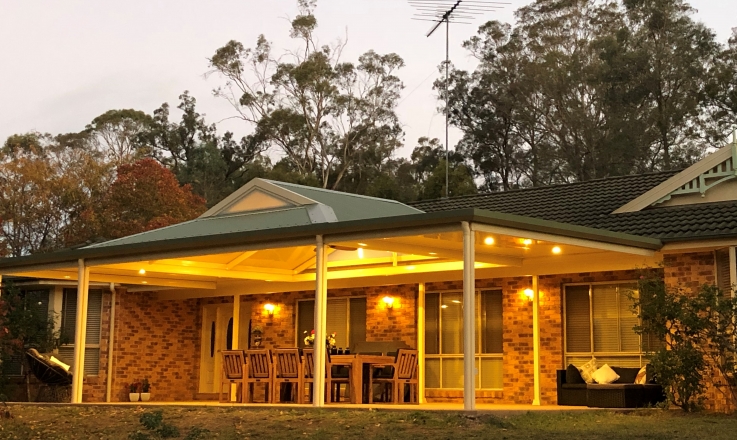

The Stratco Outback Heritage Gable will imbue your home with a traditional style
The Stratco Outback Heritage is available as either:
Traditional Gable
Dutch Gable
Both Outback Heritage Gable styles are available attached or freestanding, and use corrugated iron or polycarbonate as their cladding.
The standard eave height is 2.4 metres, but can be ordered up to 3 metres high.
Traditional Gable
With a classic pitched roof, and impressive widths of up to 8.4 metres, the Traditional Heritage Gable is extremely versatile.
It is available with a roof pitch of either 22 or 30 degrees, and a range of optional gable end infills.
Dutch Gable
The distinctive Dutch Heritage Gable style embodies a classic personality thatcomplements traditional homes.
Available in widths of up to 7.5 metres, and a roof pitch of 22 degrees, it comes with a fibre-cement sheet infill in the gable openings.
Technical
Outback Heritage Technical Information
Maximum Spans
| Wind Speed | Traditional Gable | Dutch Gable | |||
|---|---|---|---|---|---|
| Attached or Freestanding | Attach End | Attach Side | Freestanding | ||
| 22° | 30° | 22° | 22° | 22° | |
| N1 (W28) | 8400* | 8400* | 7500^ | 7500† | 7500† |
| N2 (W33) | 8400* | 8400* | 7500† | 7500† | 7500† |
| W36N | 8400* | 8400* | 7500† | 7500† | 7500† |
| N3 (W41) | 8400* | 8100* | 7200† | 6900† | 6900† |
| C1 (W41) | 8400* | 8100* | 7200† | 6900† | 6900† |
| N4 (W50) | 6900* | 6600* | 6000† | 6000† | 6000† |
| C2 (W50) | 3900 | 3600 | 3900 | 3900 | 3900 |
| W55C | 3600 | 3300 | 3600 | 3900 | 3900 |
^ One end purlin support required
† Two end purlin supports required
N = Non-cyclonic wind classification C = Cyclonic wind classification
